At Focusens, we know that thermistors are more than just components; they are the heart of temperature sensing applications that keep our world functioning smoothly. Among the two main types, NTC (Negative Temperature Coefficient) and PTC (Positive Temperature Coefficient) thermistors, understanding how to identify them is key to selecting the perfect fit for your needs. Let’s dive into their unique characteristics and the methods to distinguish between them.

What Are Thermistors?

Thermistors are temperaturesensitive resistors that change their resistance in response to temperature fluctuations. This remarkable property makes them ideal for a variety of applications, from motors humming to life in factories to the everyday appliances in our homes.

Exploring NTC and PTC Thermistors

NTC thermistors are fascinating in their behavior: as temperatures rise, their resistance drops. This makes them perfect for applications like precise temperature sensing, inrush current limiting, and overcurrent protection.

In contrast, PTC thermistors work their magic differently. As temperatures increase, their resistance rises. They are often the unsung heroes in motor protection, selfregulating heaters, and temperature control systems, stepping in to safeguard equipment from damage.

Key Differences Between NTC and PTC Thermistors

1. Resistance Behavior:

NTC Thermistors: Resistance decreases as temperature increases—ideal for accurate temperature measurements.

PTC Thermistors: Resistance increases with temperature, serving as protectors against overheating.

2. Applications:

NTC Thermistors: Found in devices needing precise temperature readings, like digital thermometers and temperature controllers.

PTC Thermistors: Essential for applications such as motor protection circuits and resettable fuses.

3. Temperature Range:

NTC Thermistors: Typically function over a broad range of temperatures.

PTC Thermistors: Operate at specific temperatures, providing targeted protection.

How to Identify NTC and PTC Thermistors

Identifying whether you have an NTC or PTC thermistor can be simple and straightforward. Here are some effective techniques:

1. Visual Inspection

Start by taking a close look at the thermistor. Many have part numbers printed on them, often indicating whether they are NTC or PTC. Checking the specifications listed on the component or packaging can also offer quick insights.

2. Testing Resistance with a Multimeter

A multimeter is your best friend in this identification process. Here’s how to use it:

Step 1: Ensure the device is powered off—safety first!

Step 2: If necessary, disconnect the thermistor from the circuit.

Step 3: Set the multimeter to measure resistance (ohms).

Step 4: Measure the resistance at room temperature (around 20°C to 25°C).

Step 5: Gently heat the thermistor using a heat source (like a heat gun) and measure the resistance again.

Interpreting Results:

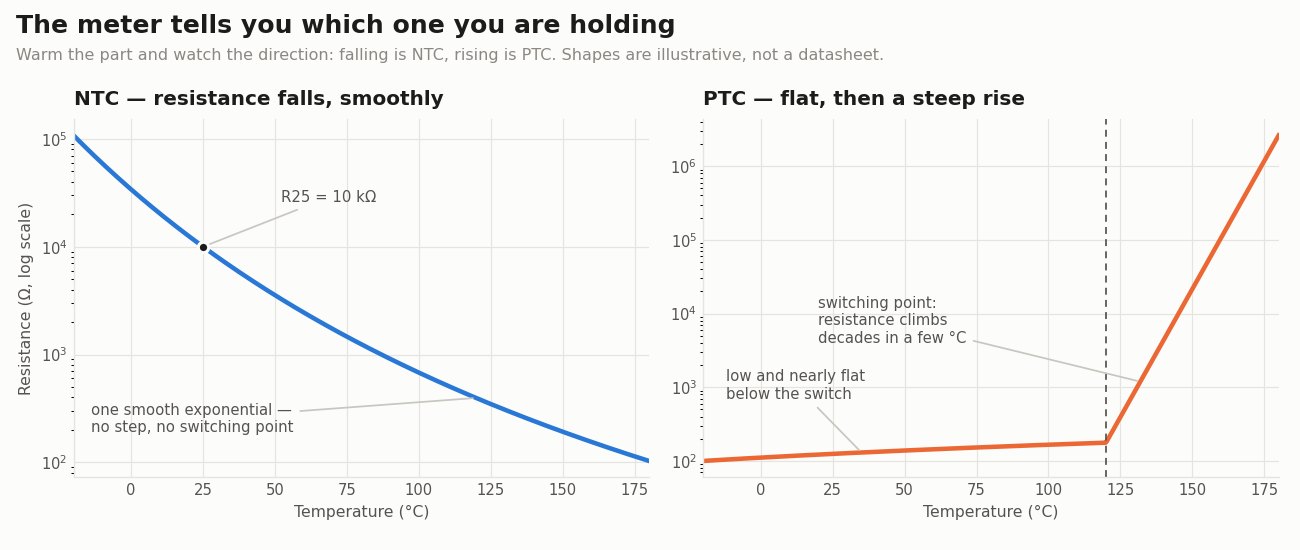

If resistance drops as temperature rises, you have an NTC thermistor.

If resistance increases, it’s a PTC thermistor.

3. Temperature Measurement

Another handson method involves observing the thermistor’s response to temperature changes:

Step 1: Connect the thermistor to a circuit capable of measuring temperature.

Step 2: Gradually increase the temperature (using an oven or hot plate) and monitor the resistance.

A drop in resistance indicates an NTC thermistor, while an increase points to a PTC thermistor.

4. Reference the Datasheet

If you have access to the thermistor’s datasheet, it’s the gold standard for identification. Look for details like:

Temperature coefficient type (NTC or PTC)

Resistance vs. temperature characteristics

Application guidelines

Why Identifying the Right Thermistor Matters

Choosing the correct thermistor is vital for your application’s success. Using an NTC thermistor when a PTC is required can lead to equipment failures, inaccurate readings, and safety risks. Proper identification ensures:

Safety: Protects against overheating and electrical faults.

Accuracy: Guarantees precise temperature readings.

Efficiency: Optimizes overall system performance.

Common Applications of NTC and PTC Thermistors

NTC Thermistors: Integral in digital thermometers, temperature controllers, and battery packs, where accurate temperature monitoring is crucial.

PTC Thermistors: Frequently found in motor protection circuits, heating elements, and as resettable fuses, ensuring safety and efficiency.

At Focusens, we take pride in offering highquality thermistors tailored for various applications. By understanding the differences and identification methods, you can make informed decisions that enhance your projects and ensure safety and precision.
